BSS606N H6327
Manufacturer:
Infineon
Mfr.Part #:
BSS606N H6327
Datasheet:
Description:

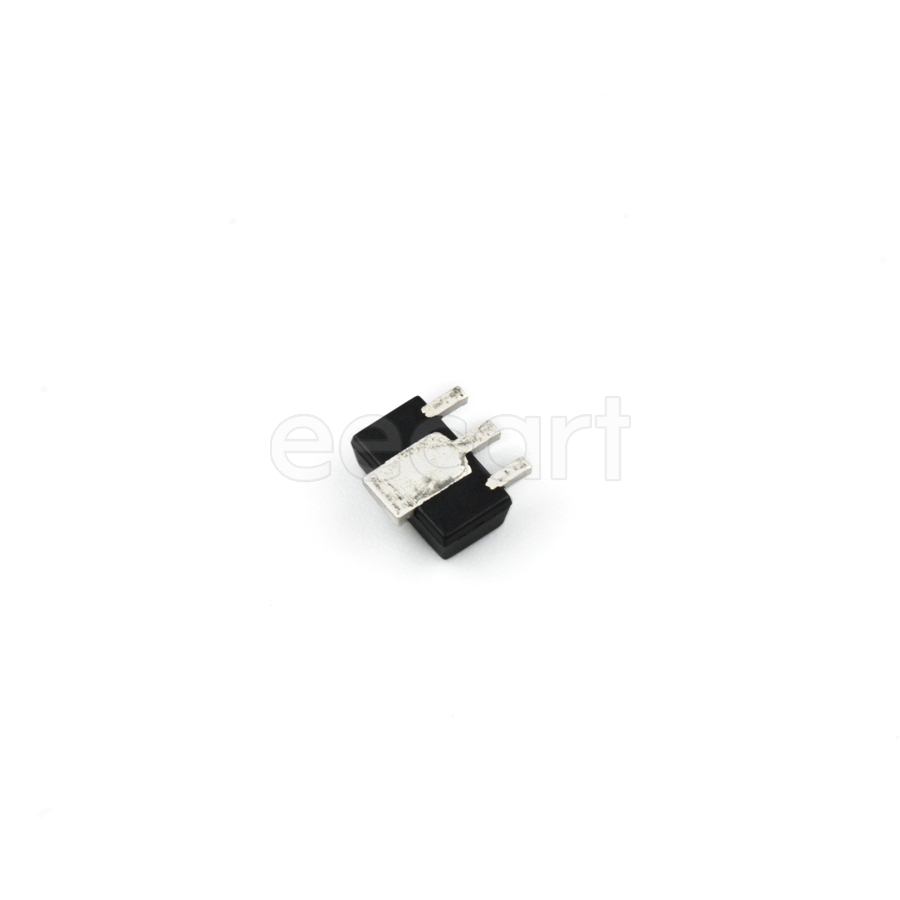

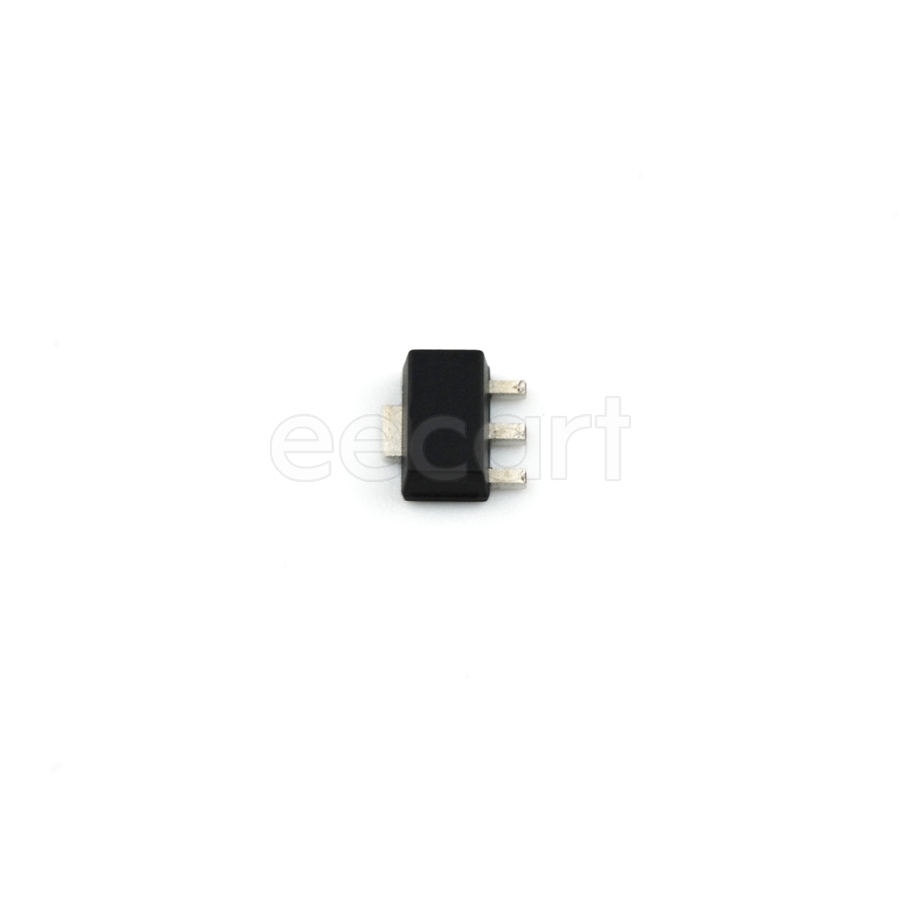

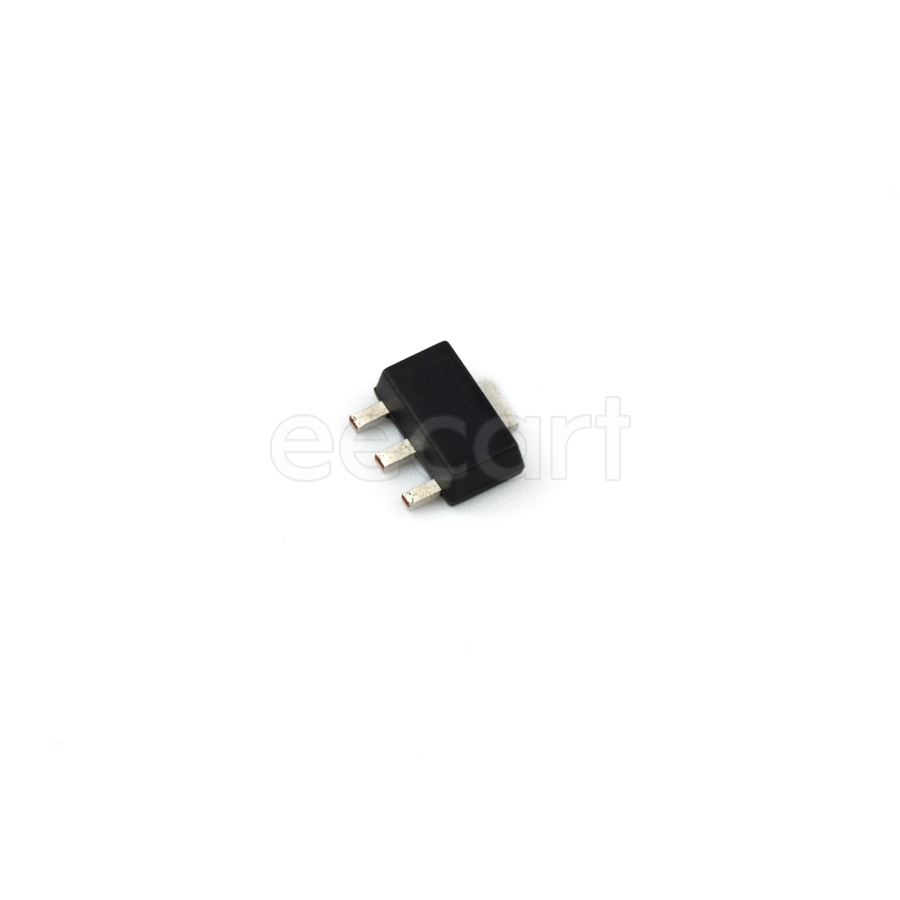

MOSFETs SOT-89-3 SMD/SMT N-Channel number of channels:1 1 W 60 V Continuous Drain Current (ID):3.2 A 3.7 nC
| Parameter | Value |
|---|---|
| Gate Charge | 3.7 nC |
| Gate to Source Threshold Voltage | 1.8 V |
| Continuous Drain Current (ID) | 3.2 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Resistance | 60 mΩ |
| Power Dissipation | 1 W |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| Number of Channels | 1 |
| Packaging | Reel |
| RoHS | Compliant |
| FET Type(Transistor Polarity) | N-Channel |
| Input capacitance | 494 pF |
Stock: 3806
Distributors
pcbx
pcbxUnit Price$0.33257
Ext.Price$0.33257
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33257 | $0.33257 |
| 10 | $0.24964 | $2.49640 |
| 50 | $0.21570 | $10.78500 |
| 100 | $0.18637 | $18.63700 |
| 500 | $0.14620 | $73.10000 |
| 1000 | $0.11285 | $112.85000 |
| 3000 | $0.10395 | $311.85000 |
| 5000 | $0.09575 | $478.75000 |
| 10000 | $0.08977 | $897.70000 |
